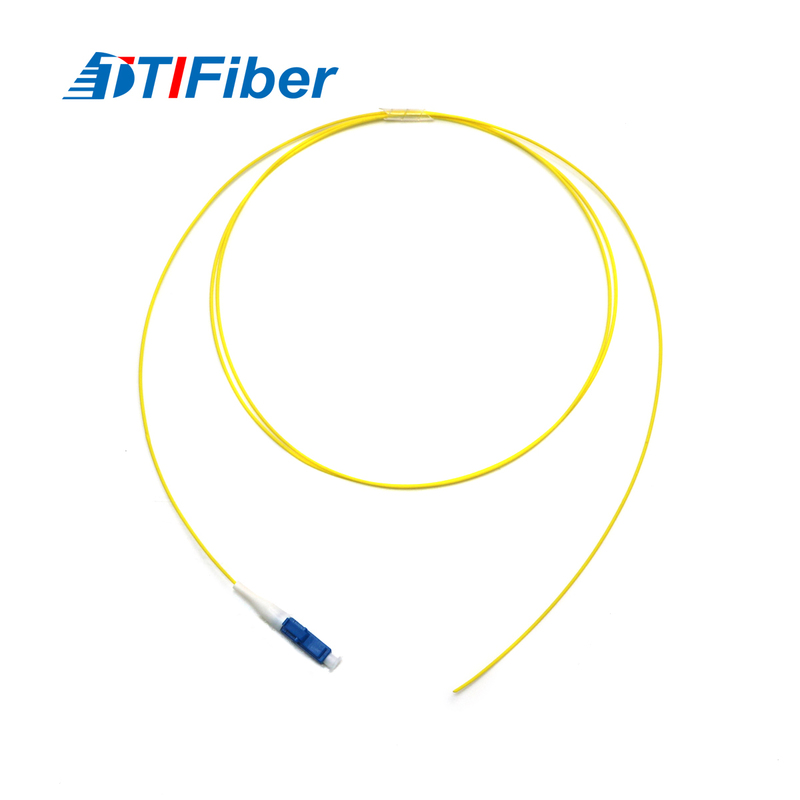

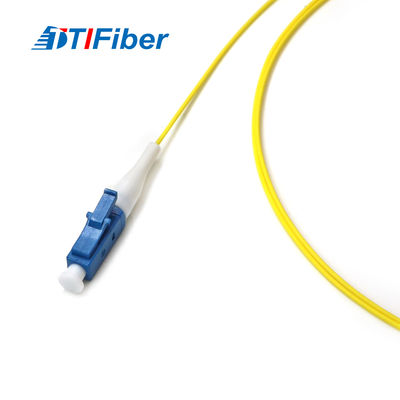

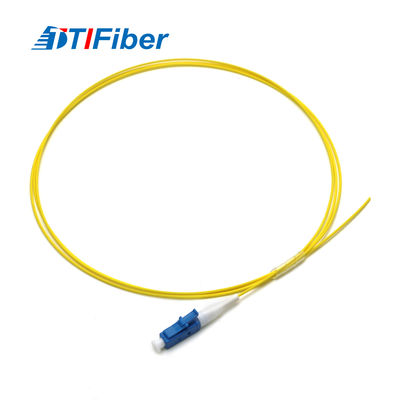

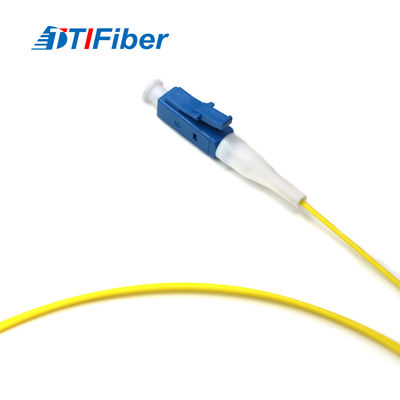

LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | TTI Fiber |
| Sertifika: | ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates |
| Model numarası: | APG |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ambalaj bilgileri: | 1 ADET / PE Torba |
| Teslim süresi: | 60 iş günü |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 7000 adet/gün |
|
Detay Bilgi |
|||
| Ceket: | PVC/LSZH, PVC veya LSZH | Renk: | mavi, Sarı/sulu, sarı, Turuncu |
|---|---|---|---|
| Uzunluk: | 1M/2M/3M vb. | Bağlayıcı tipi: | SC/LC/ST/FC |
| Ekleme kaybı: | ≤0,20, MM≤0,75dB, SM≤0,50dB, ≤0,1dB, IL<0,2db | Bağlayıcı: | FC, SC, SC/APC (seçim için LC, LC, FC) |
| Fiber tipi: | SM 9/125 G652D, OS1, 9/125 sıkı tamponlu fiber Tek Modlu tek yönlü, G652D/G657A1/G657A2 vb., G657A1 | Kablo çapı: | 0,9/2,0/3,0 mm, 3 mm, 0,9 mm, vb. |
| Vurgulamak: | LC APC single mode fiber optic cable,G652D simplex patch cord,fiber optic pigtail with warranty |
||
Ürün Açıklaması
LC APC Single Mode Simplex G652D Fiber Optic Cable Network Communication Patch Cord
Quick Detail:
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Cable color: Yellow, Orange, Aqua, White, Red, Green, 12 colors
- Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
- Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
- Cable length: 1m, 2m, 3m, 5m....customized
- Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized
Description:
Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.
Features:
- 100% test before shipment
- Low insertion loss and high return loss
- Custom Configurations Available at No Extra Charge
- Available in fiber bunch, ribbon fan-out, pigtail available
- Serialized & Individual Test Records
- Meets ROHS and Bell core GR 326-core standards
Applications:
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Specification:
| Parameter | Single Mode | Multi Mode |
|---|---|---|
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO |
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
| End-face Geometry | Radius of Curvature: 7~25mm | 5~12mm | N/A |
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | ≤100nm | N/A |
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | ≤100nm | N/A |
| Apex offset | ≤50um | |
| Mechanical | Exchangeability: ≤0.2dB | |
| Salt Spray | ≤0.1dB | |
| Drop | ≤0.2dB(1.5M, 5 drops) | |
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |
| Repeatability | ≤ 0.1dB(1000 times) | |
| Durability | > 1000 times | |
| Operating Temperature | -40°C ~ +85°C | |
Ordering Information:
- Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
- Ferrule End-face: PC, UPC or APC
- Fiber Type: Single Mode(SM) or Multimode
- Cable Core: Simplex or Duplex
- Cable Diameter: 0.9mm, 2.0mm or 3.0mm
- Cable Length: 1, 2, 3 meter or customized
- Cable Type: PVC, LSZH, OFNR, OFNP…
- Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
